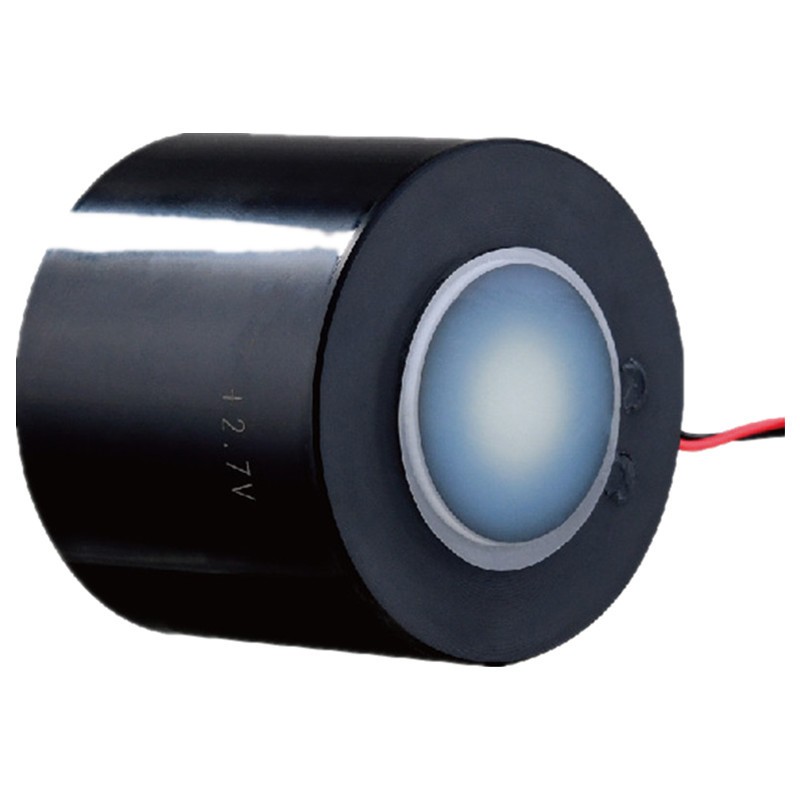

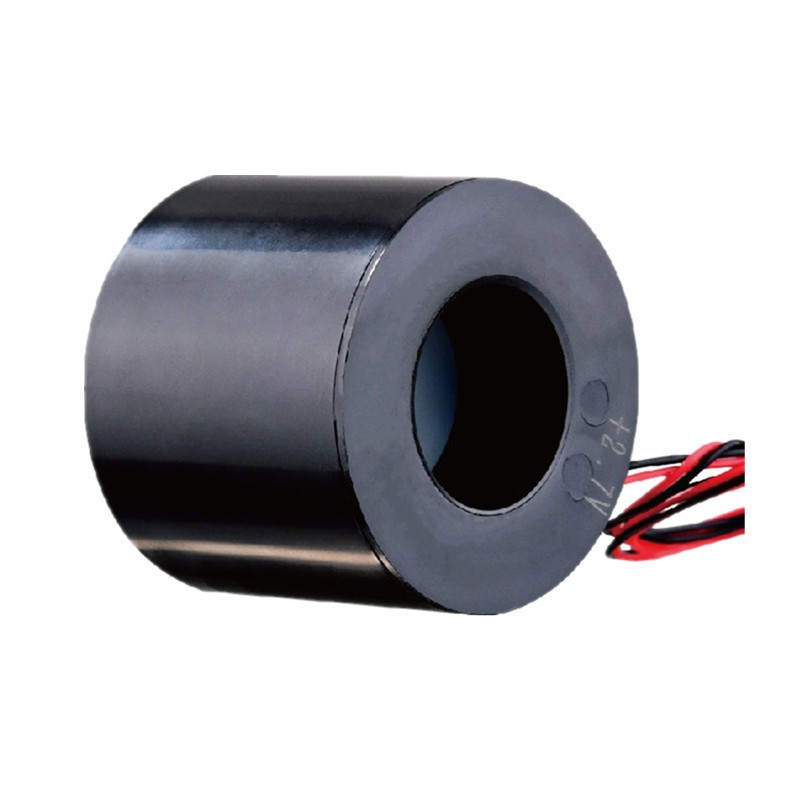

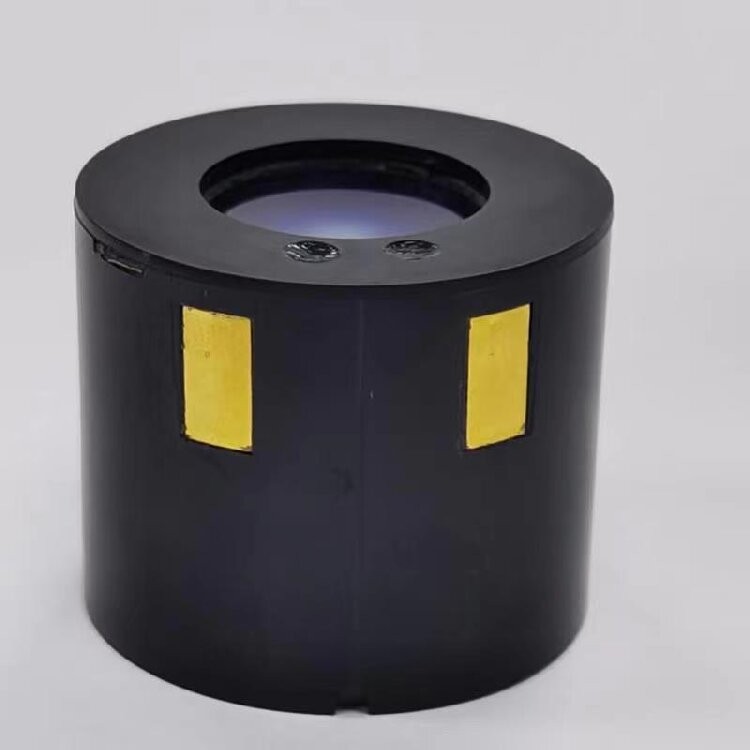

Gen2+ image intensifier tube adopts proximity focused electronic optical system and S25 + photo cathode with extended red light response and magnification ratio of 1. The product has the functions of strong light source protection and polarity reversal protection, and has the advantages of small size, light weight and low power consum ption.
Parameter | Class C | Class B | Class A | Unit |
Figure Of Merit | 1400 | 1600 | 1800 | |
Sensitivity (2856K) | 700 | 800 | 1000 | μA/lm |
SNR | 23 | 25 | 28 | |
Resolution | 60 | 64 | 64 | lp/mm |
High light resolution (200lx) | - | 54 | 54 | lp/mm |
Operating voltage | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | V |
Operating current | ≤25 | ≤35 | ≤35 | mA |
Luminance gain | 8000-12000 | 8000-12000 | 10000-20000 | cd/m 2 /lx |
Maximum output brightness | 4~8 | 4~8 | 4~10 | cd/m 2 |
Working illumination range | / | 1×10 -6 ~5×10 4 | 1×10 -6 ~5×10 | lx |
Uniformity of luminance(2856K) | 3:1 | 3:1 | 3:1 | |
Cathode effective diameter | 17.5 | 17.5 | 17.5 | mm |
Power supply | Normal | Auto-gating | Auto-gating | |
Phosphor powder | P43/P45 | P43/P45 | P43/P45 | |
Weight | ≤80 | ≤80 | ≤80 | g |
Power consumption | 33-51 | 55-85 | 55-85 | mW |
