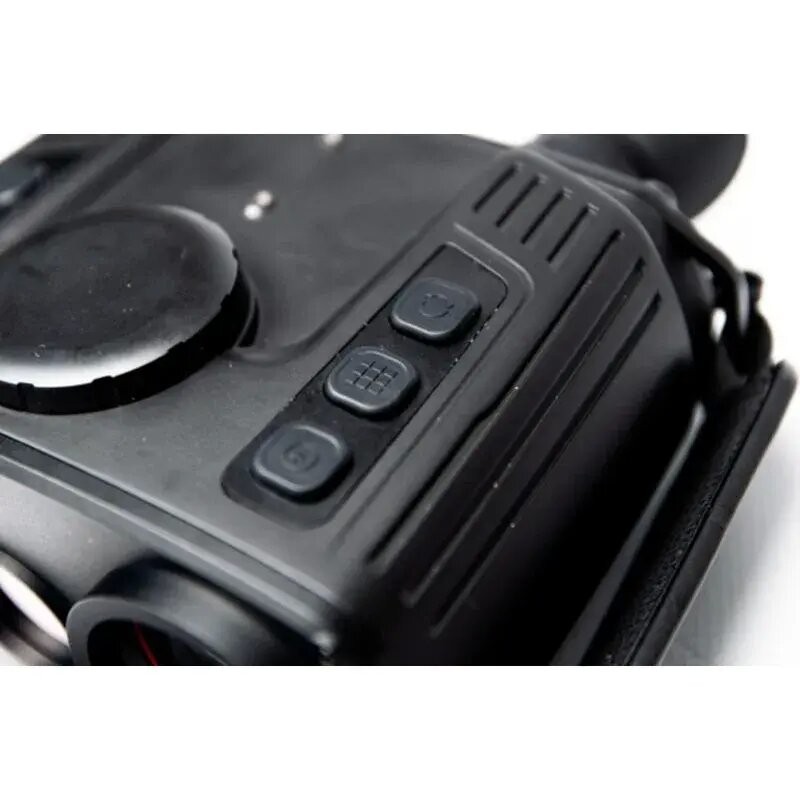

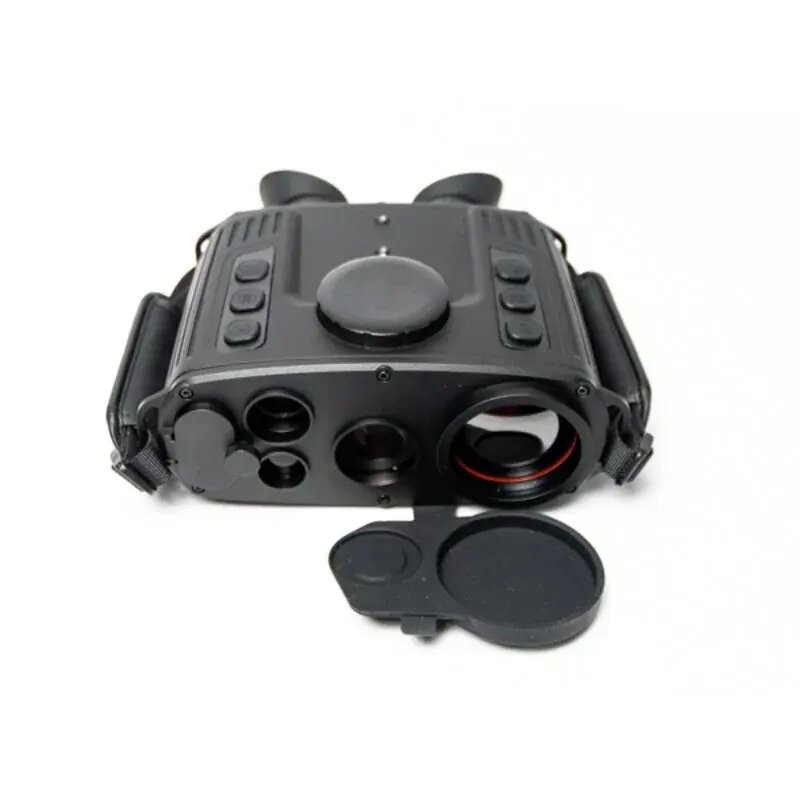

The integrated technology such as ultra-low illumination COMS, infrared thermal imager, electronic compasses, GPS, video
compression storage and control are used for the binocular fusion thermal imager (hereinafter referred to the thermal imager), which
can be used for tactical reconnaissance day and night, monitoring and identifying camouflage targets. It is characteristic of a small
size, convenience in taking and good adaptation to environments. The thermal imager is easy to carry by a single person for front
observation, and is also suitable for setting up a fixed observation station for observation, day and night observation, photographing
and video recording of targets. It can be widely used in patrol, investigation, law enforcement, anti smuggling, anti drug, forest fire prevention, emergency search and rescue and other occasions.

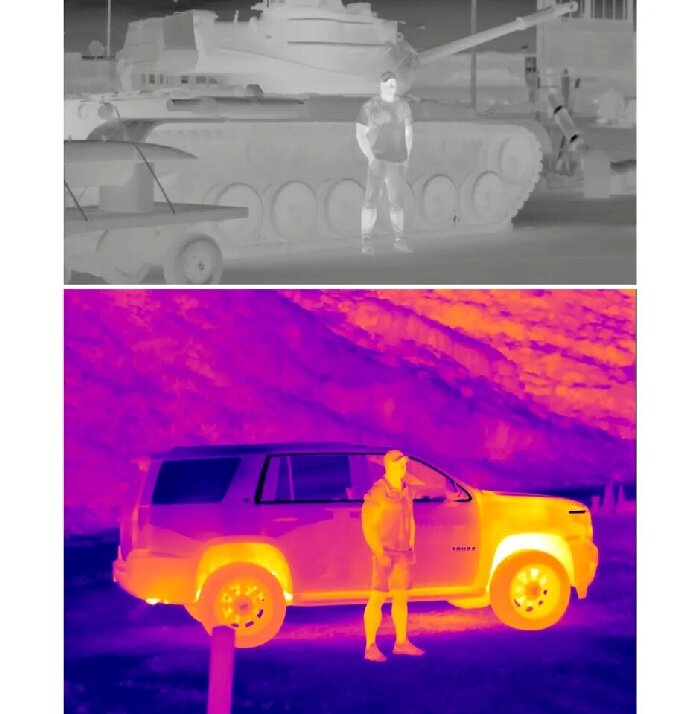

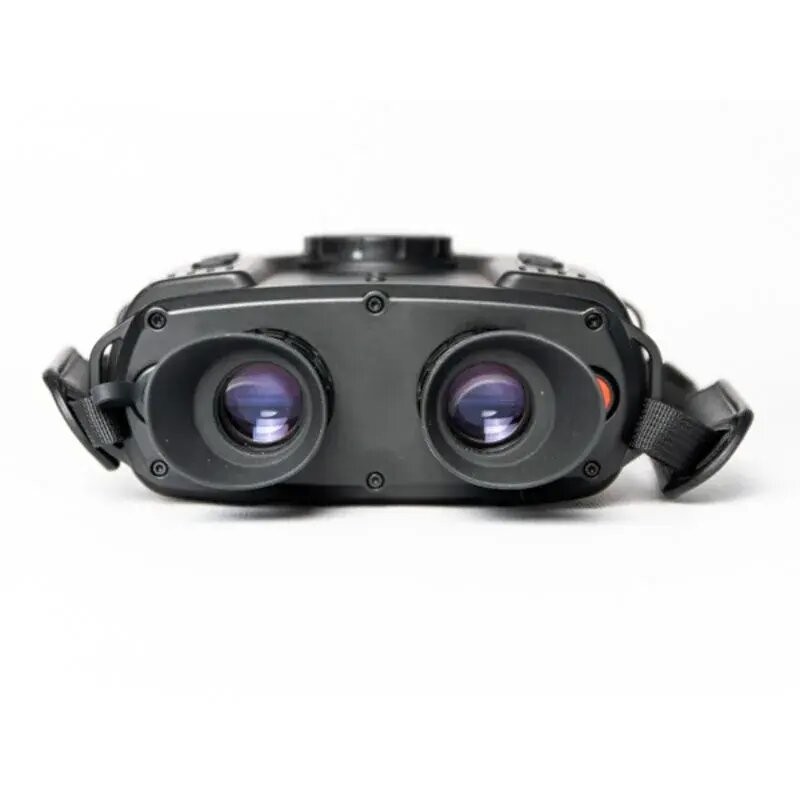

Thermal | ||
Model | YM-R380 | YM-R680 |
Detector type | Amorphous silicon uncooled infrared focal plane | |
Resolution | 384*288 | 640*512 |
Pixel size | 17um | 12um |
Field of view | 7.5°x 5.6° | |
Working band | 8-14um | |
NETD | <50mk@25℃,@f/1.0 | |
Focal length | 50mm | |
Frame rate | ≤50Hz | |
Focus mode | Electric focus | |
Detection distance | ||
Human(1.7mx0.5mx0.3m) | 3330m | 5000m |
Vehicles(4.5mx2.0mx1.5m) | 8823m | 12000m |
Identification distance | ||
Human(1.7mx0.5mx0.3m) | 883m | 1200m |
Vehicles(4.5mx2.0mx1.5m) | 2205m | 3200m |
Shimmer | ||
Detector type | Ultra-low illumination CMOS | |
Resolution | 1920x1080 | |
Pixel size | 4.0um | |
Focal length | 35mm | |
Frame rate | ≤30Hz | |
Focus mode | Focus free | |
Display | ||
Display screen type | OLED | |
Resolution | 1024x768 | |
Display screen size | 0.39 inches | |

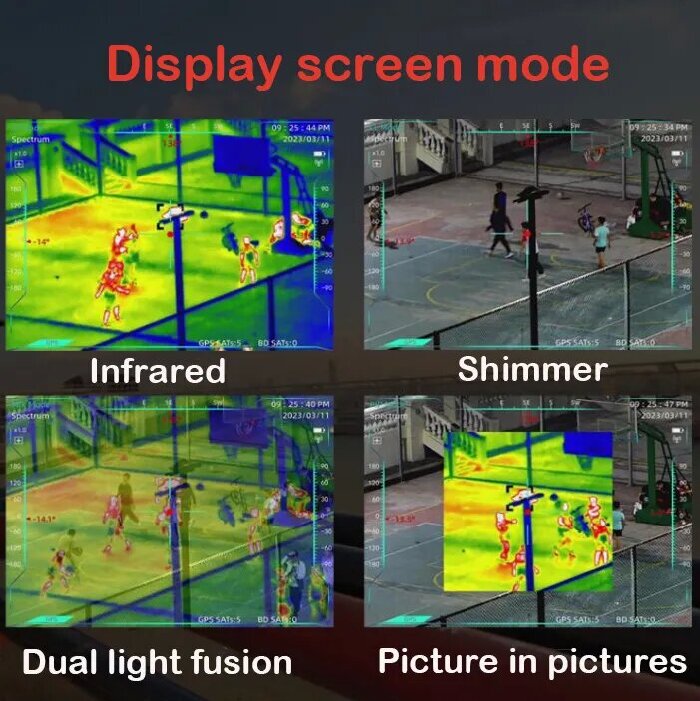

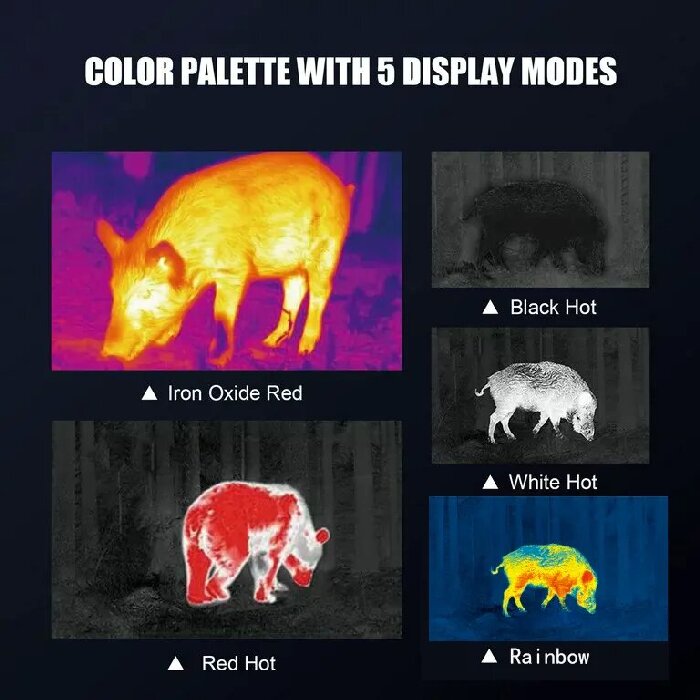

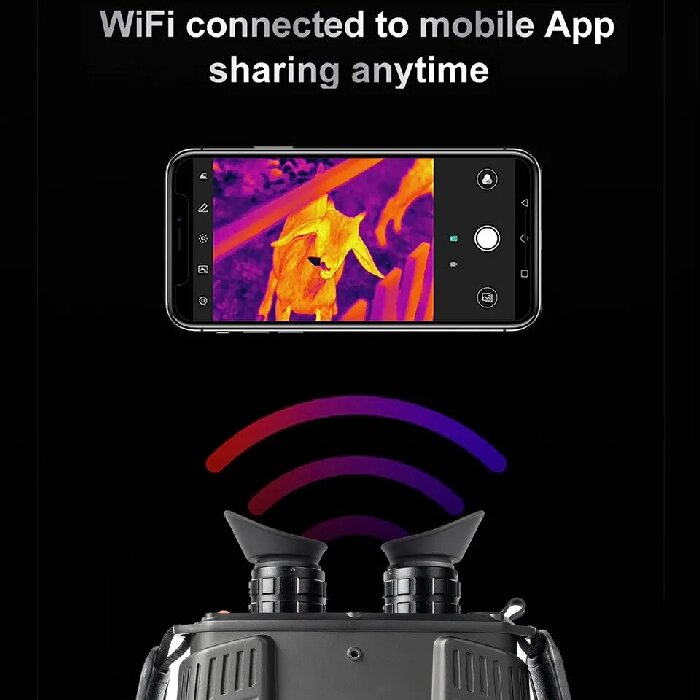

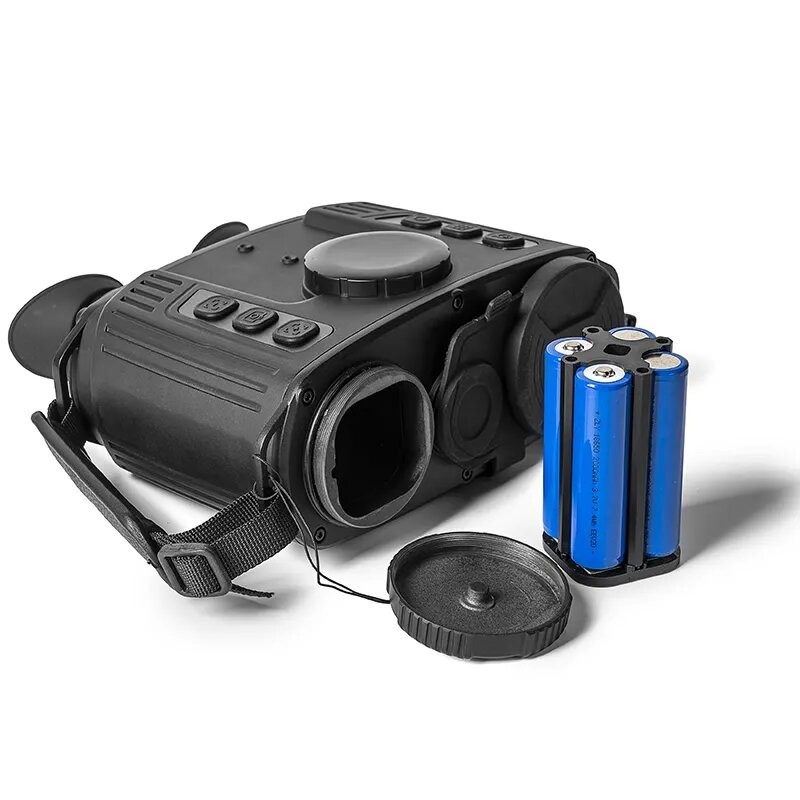

Display screen mode | Infrared/shimmer/dual light fusion/picture in pictures | |
Digital zoom | 1x /2x /4x | |
Visual control | ±4SD | |
Color palette | Rainbow, iron red, cold color, white hot, and black hot | |
Other functions | ||
WIFI | 2.4G image transmission | |
Digital compass | Square angle display | |
Positioning | GPS/BD | |
Storage | ||
Capacity | Built-in 16G eMMC (Note: the usable storage capacity is less than this value, because the system software occupies a certain space) | |
Shooting | Support | |
Video recording | Support | |
Picture/Video format | JPG/MP4 | |
Interface | ||
CVBS output | PAL system video output | |
USB interface | Export pictures and videos | |
External power supply | DC12/1A | |
Power supply | ||
Battery | 3200mAhx2 (battery model 18650) | |
Battery charging mode | Standalone charging stand | |
Overall power consumption | ≤6W | |
Working time | ≥4 hours | |
Operating/storage environment | ||
Operating temperature | -20℃ to 50℃ | |
Storage temperature | -30℃ to 70℃ | |
Shock | ≤30g | |
Protection level | P54 | |
Dimension | 193.1mmx176.8mmx99mm | |
Weight | 1.58kg (including batteries) |
