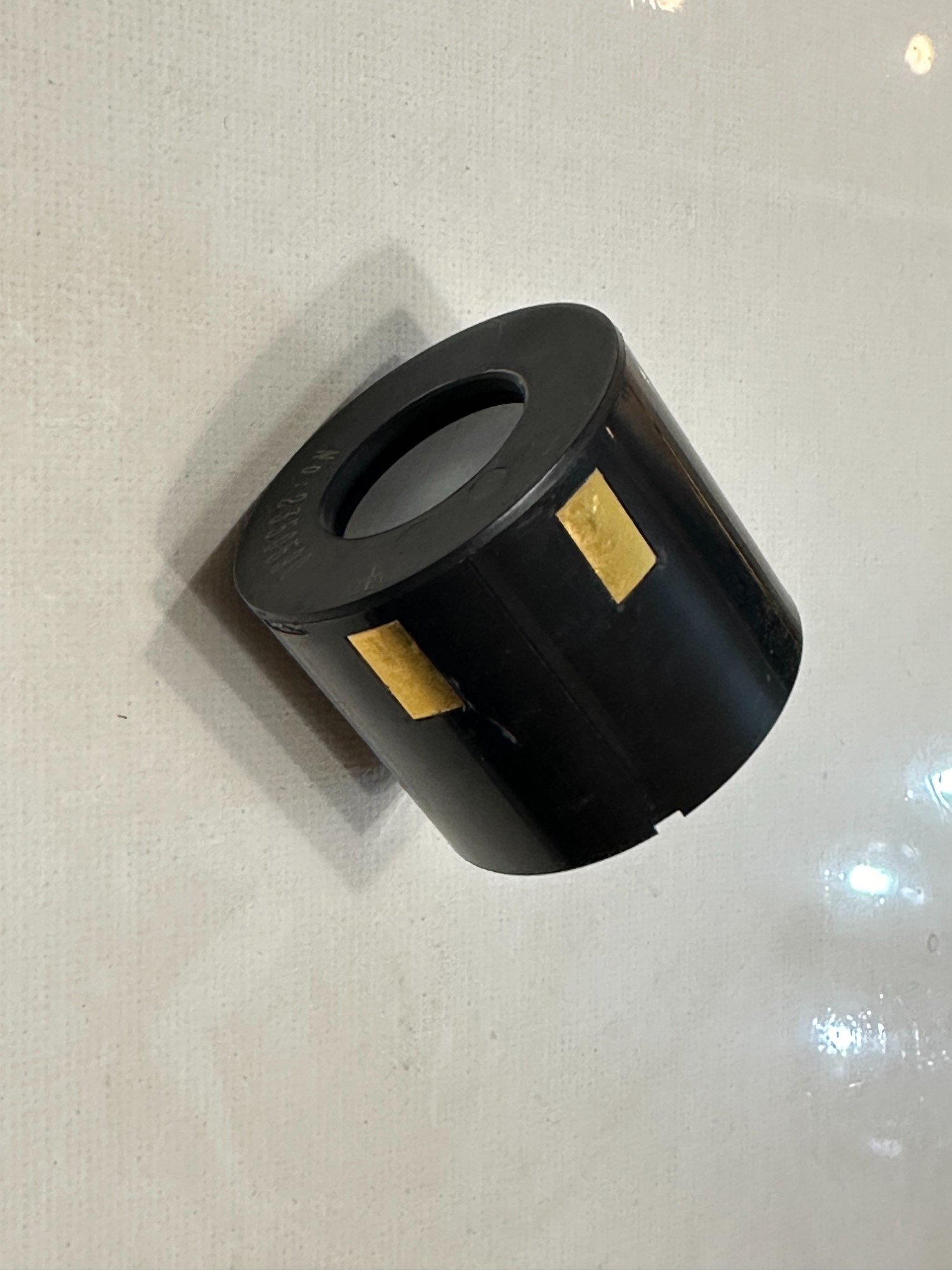

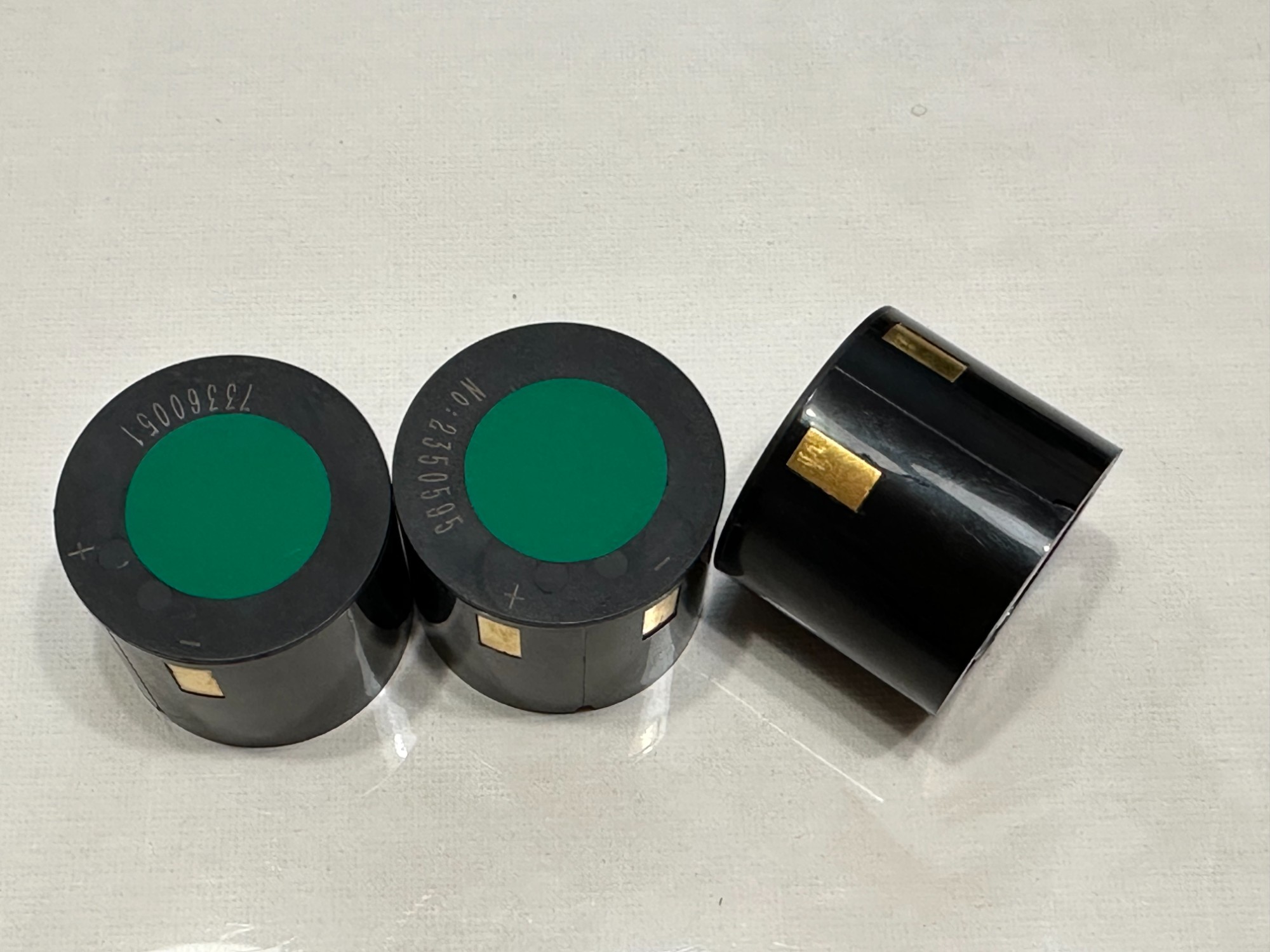

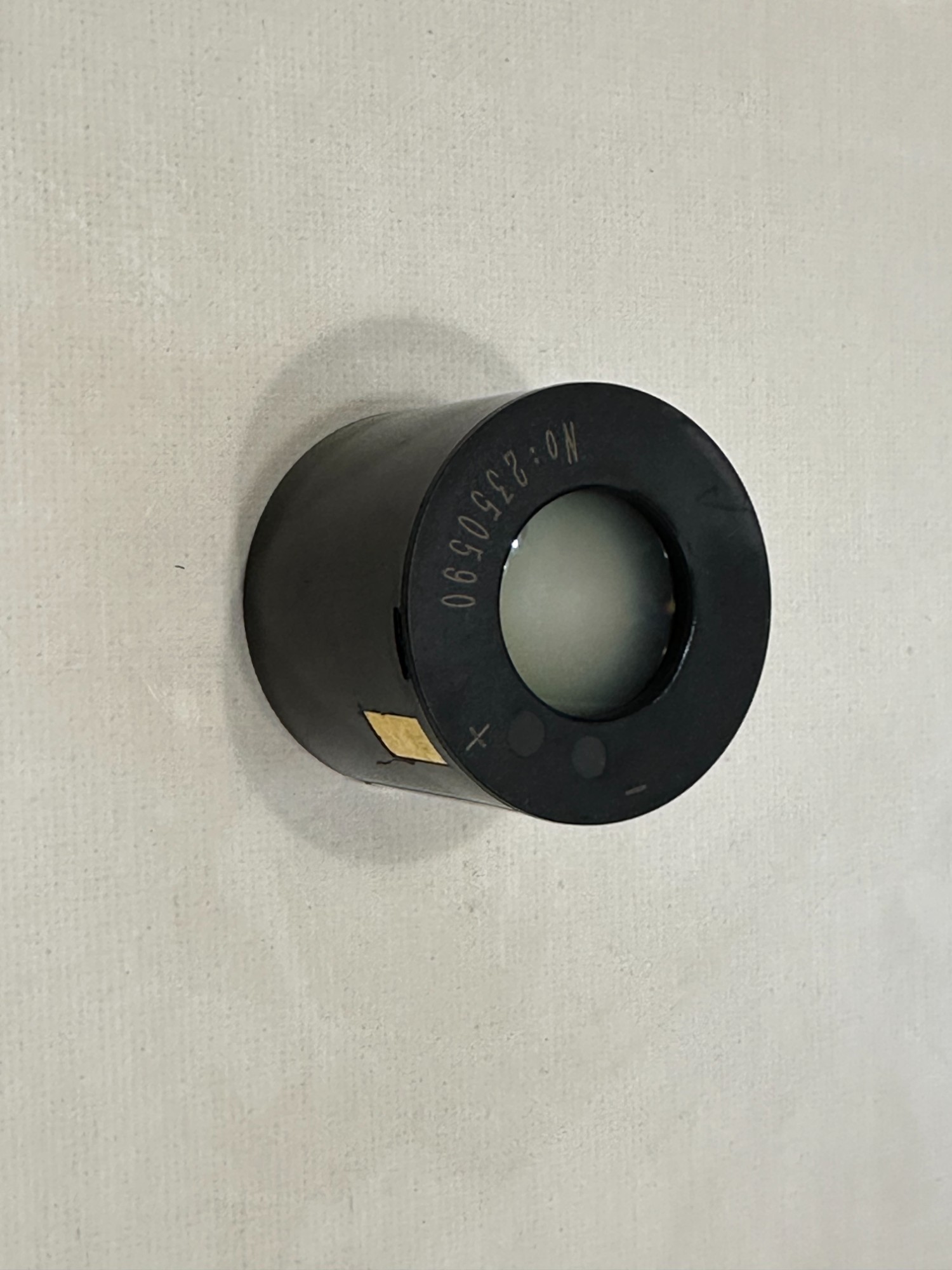

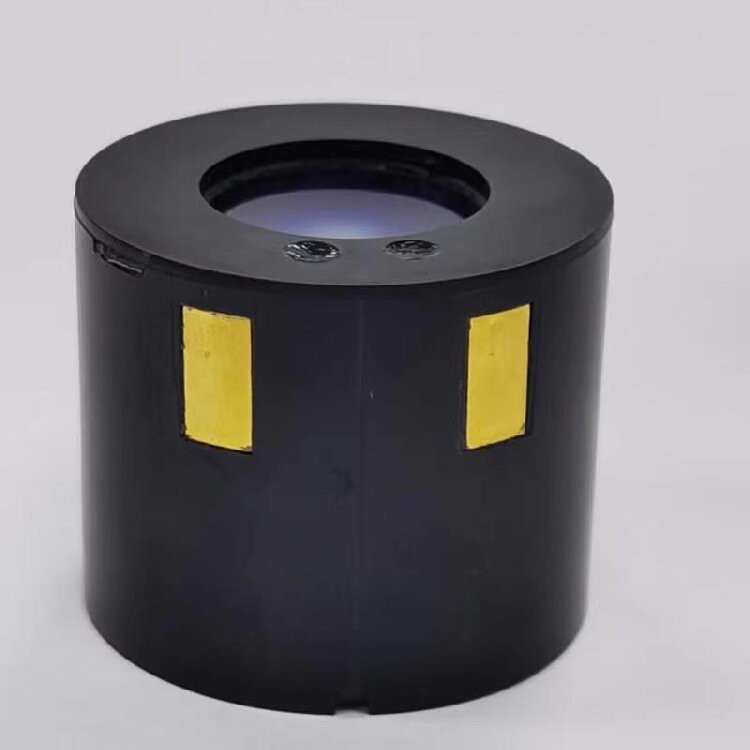

NNVT 10160 Type Gen2+ White Phosphor Gree Phosphor Autogated Image Intenfier Tube FOM1400 FOM1600 For PVS14 PVS31 PVS7 BNVD 1431 - 副本

NNVT 10160 Type Gen2+ White Phosphor Gree Phosphor Autogated Image Intenfier Tube FOM1400 FOM1600 For PVS14 PVS31 PVS7 BNVD 1431

EMAIL

Parameter

Class C

Class B

Class A

Unit

Figure Of Merit

1400

1600

1800


Sensitivity (2856K)

700

800

1000

μA/lm

SNR

23

25

28


Resolution

60

64

64

lp/mm

High light resolution (200lx)

-

54

54

lp/mm

Operating voltage

2.2-3.4

2.2-3.4

2.2-3.4

V

Operating current

25

35

35

mA

Luminance gain

8000-12000

8000-12000

10000-20000

cd/m 2 /lx

Maximum output brightness

4~8

4~8

4~10

cd/m 2

Working illumination range

/

1×10 -6 ~5×10 4

1×10 -6 ~5×10

lx

Uniformity of luminance(2856K)

3:1

3:1

3:1


Cathode effective diameter

17.5

17.5

17.5

mm

Power supply

Normal

Auto-gating

Auto-gating


Phosphor powder

P43/P45

P43/P45

P43/P45


Weight

80

80

80

g

Power consumption

33-51

55-85

55-85

mW

Gen2+ image intensifier tube adopts proximity focused electronic optical system and S25 + photo cathode with extended red light response and magnification ratio of 1. The product has the functions of strong light source protection and polarity reversal protection, and has the advantages of small size, light weight and low power consum ption.
