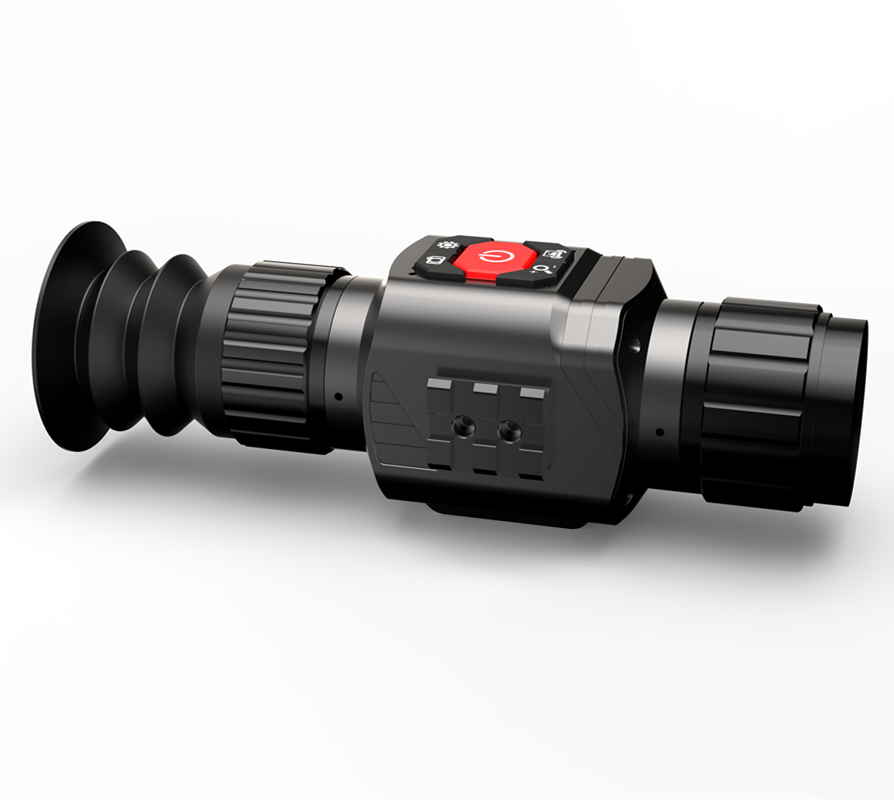

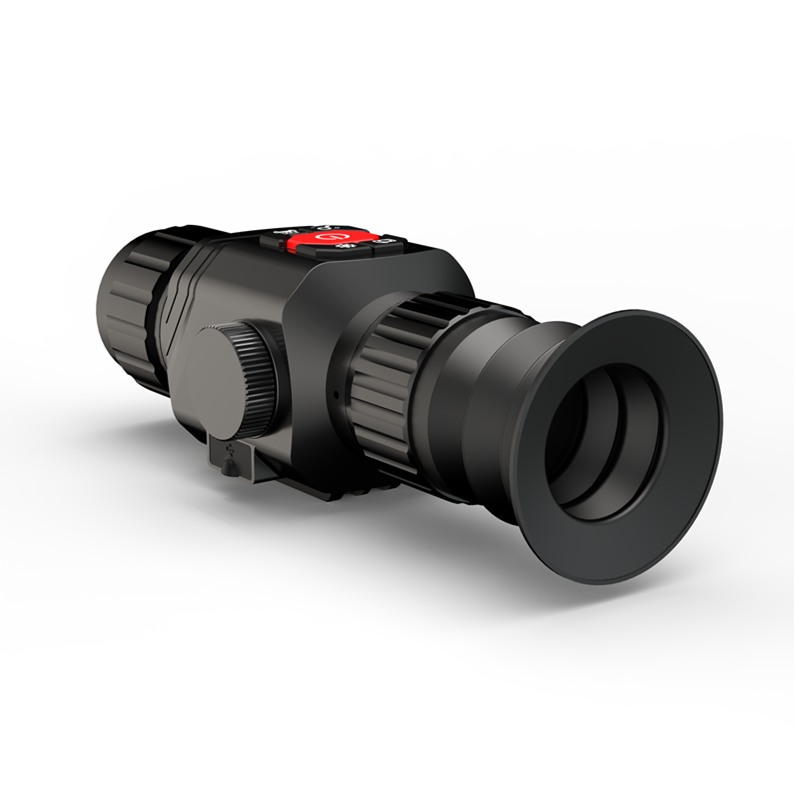

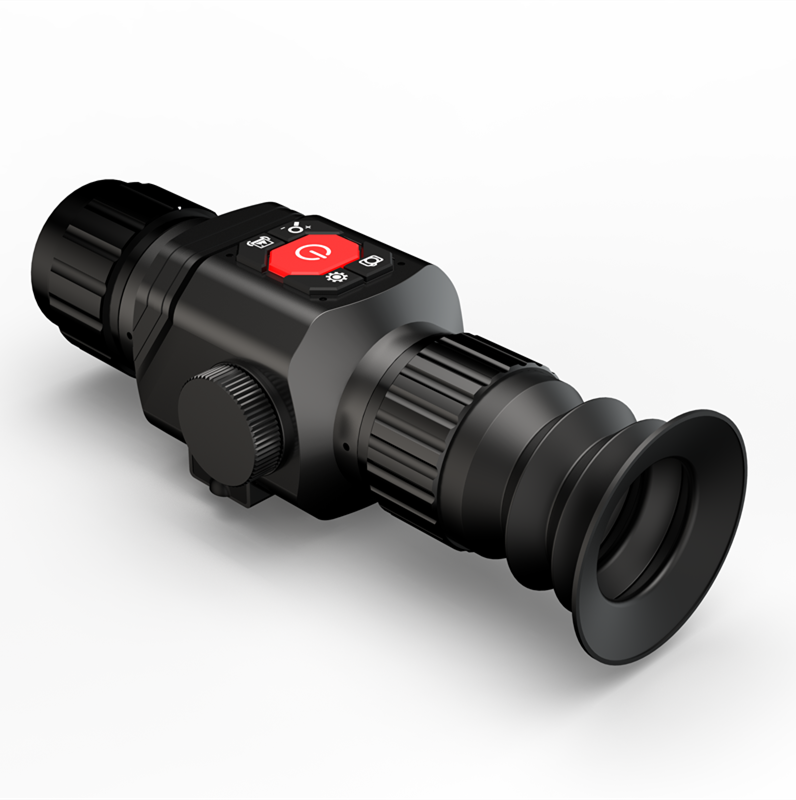

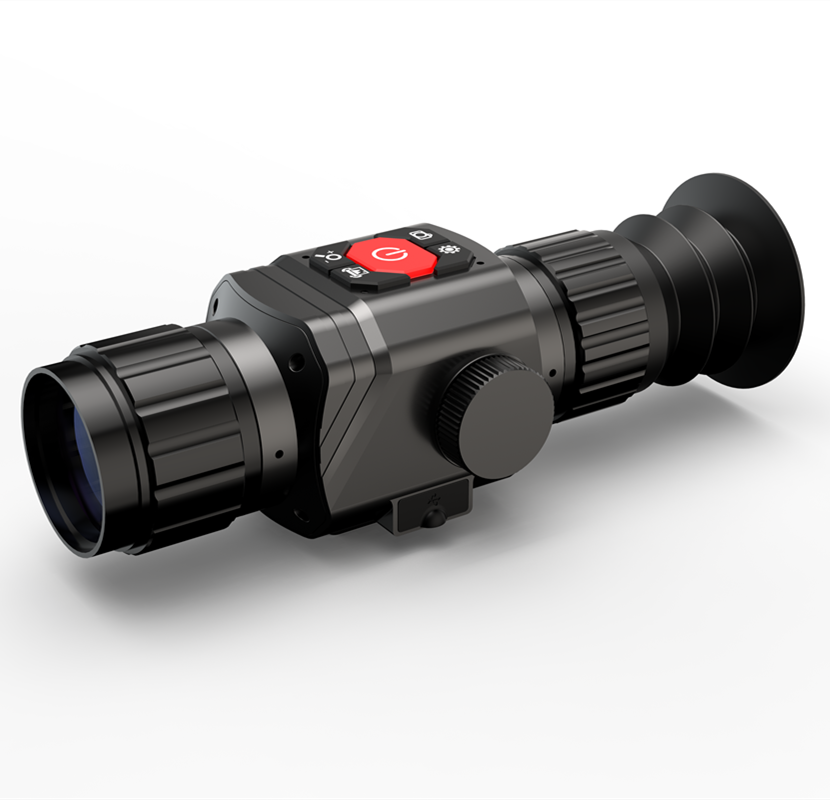

The YM-C8 outdoor thermal image telescope takes advanced uncooled focal plane infrared
detector and high quality optical lens as the core in combination with a convenient and fast
operating system, compact shape design, fully functional expansion spare parts, long service life, ruggedness and durability, suitable for various environments. It has built an infrared thermal imaging tool with “clear imaging, simple operation and easiness to carry”. This product is used for field animal observation, search and rescue, police law enforcement and investigation, night patrol, outdoor sports, personal security, etc. This product functions as photo taking, and can browse photos taken through the USB connected computer, which is convenient for multiple people to observe at the same time and create possibilities for more applications.
Detector type | Uncooled focal plane | |||
Detector’s resolution | 384x288@17um | |||
Frame rate | 50Hz | |||
Response wave band | 8um-14um | |||
NETD | ≤50mk | |||
Focal lens | 25mm | 35mm | 54mm | 75mm |
Lens adjustment | Manual focusing and definition adjustment | |||
FOV | 14.9°x11.2° | 10.7°x8.0° | 6.9°x5.2° | 5.0°x3.7° |
Image processing | Nonuniformity correction, image smoothing function, image detail enhancement, digital filtering and noise reduction | |||
Image detail mode | 5-level image edge adjustment (0-4), or 5-level image detail adjustment (0-4) | |||
Digital amplification | 2x, 4x | |||
Brightness regulation | 10-level brightness regulation (0-9) performance indices | |||
Contrast regulation | 10-level contrast regulation (0-9) | |||

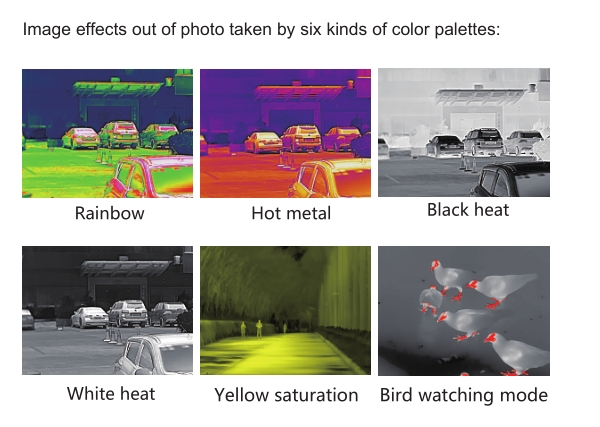

Color palette | 6 categories of color palettes, rainbow, hot metal, white heat, black heat, yellow saturation, bird watching mode | |||
Hot spot tracking | hot spot tracking indication, automatically track multiple hot spot targets, and capable of choosing to turn on or off the hot spot tracking function | |||
Cross cursor | 7 categories of cross cursors, to change different cursors freely, to accurately locate the target, and to be able to choose to turn on or off the cross cursors | |||
Cursor distance calibration | to calibrate cursor positioning based on different distances, to change target distance cursor at any time, and to aim at the target accurately. | |||
Target distance (25mm lens) | Human | Detection: 1667M, Identification: 471M | ||
Wild boar | Detection: 1471M, Identification: 367M | |||
Vehicle | Detection: 2334M, Identification: 584M | |||
Target distance (35mm lens) | Human | Detection: 2334M, Identification: 584M | ||
Wild boar | Detection: 2059M, Identification: 514M | |||
Vehicle | Detection: 3501M, Identification: 876M | |||
Storage capacity | 16G | |||
Image type | BMP | |||
USB | Type-C | |||
Battery model | 18500 Panasonic lithium battery; 2040mAH | |||
Working hours | ≥6 hours | |||
Automatic power off duration | 40 minutes | |||
Encapsulation type | Metal | |||
Shock resistance | 800G IEC68-2-29 | |||
Weight | 500 grams | |||
Dimension | 180x72x62mm (25mm focal length) | |||
Waterproof | IP66 | |||
Operating temperature | 0℃ to 45℃ | |||
Storage temperature | -20℃ to 60℃ | |||
Power consumption | 1w | |||
