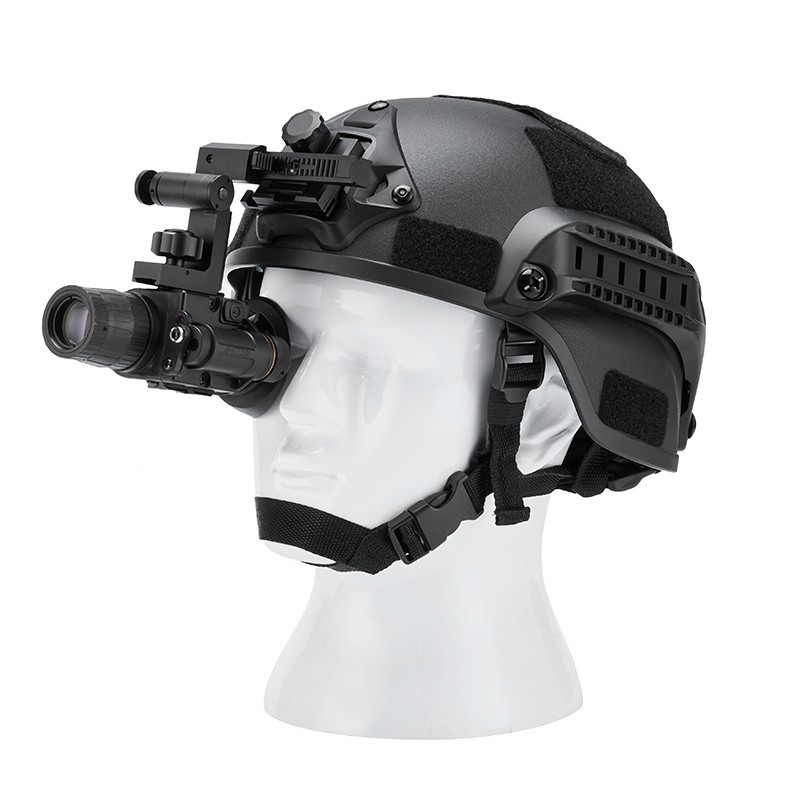

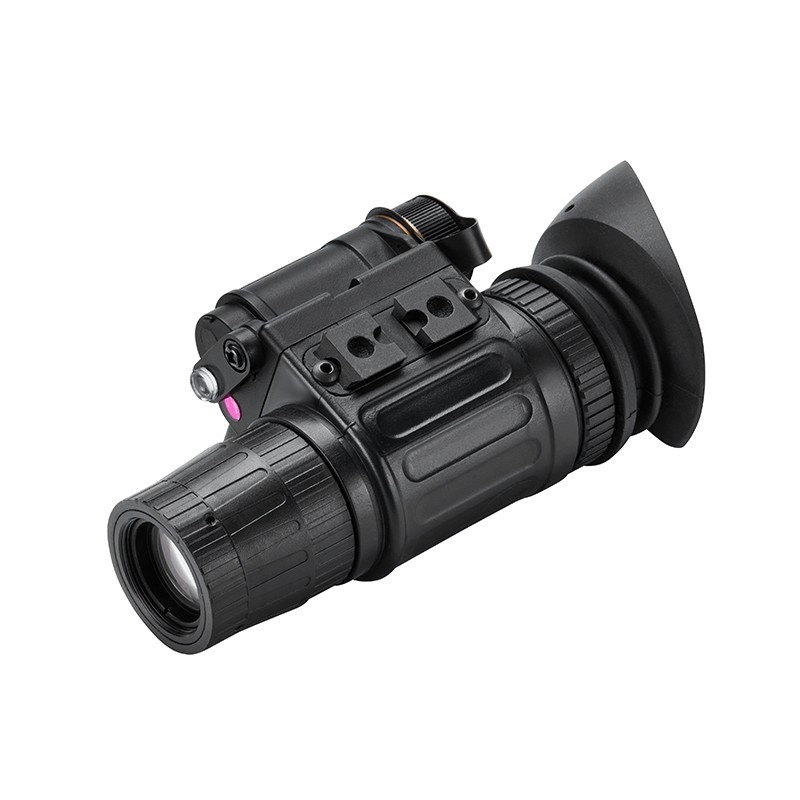

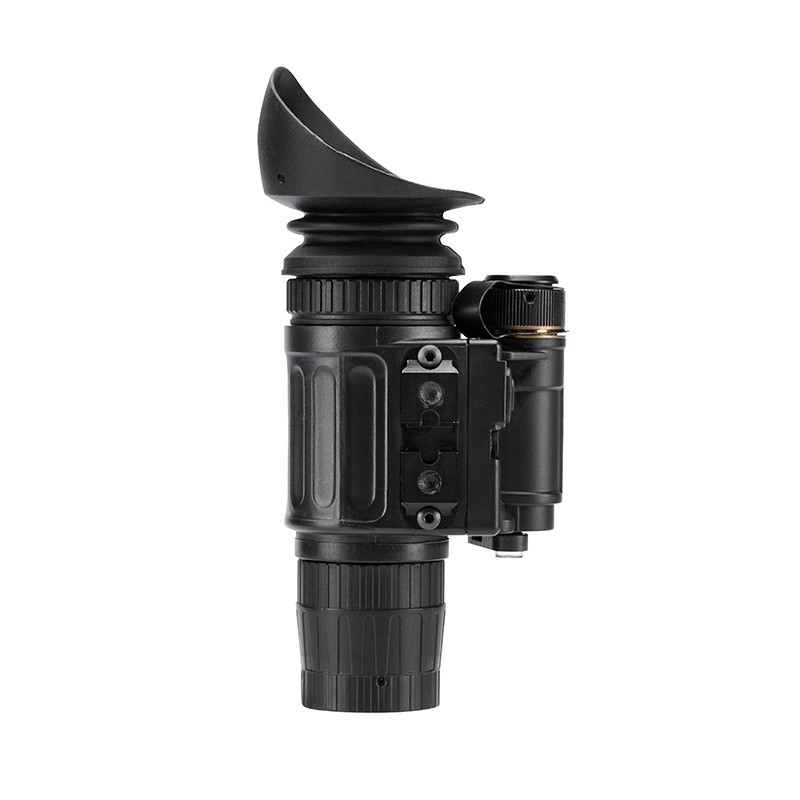

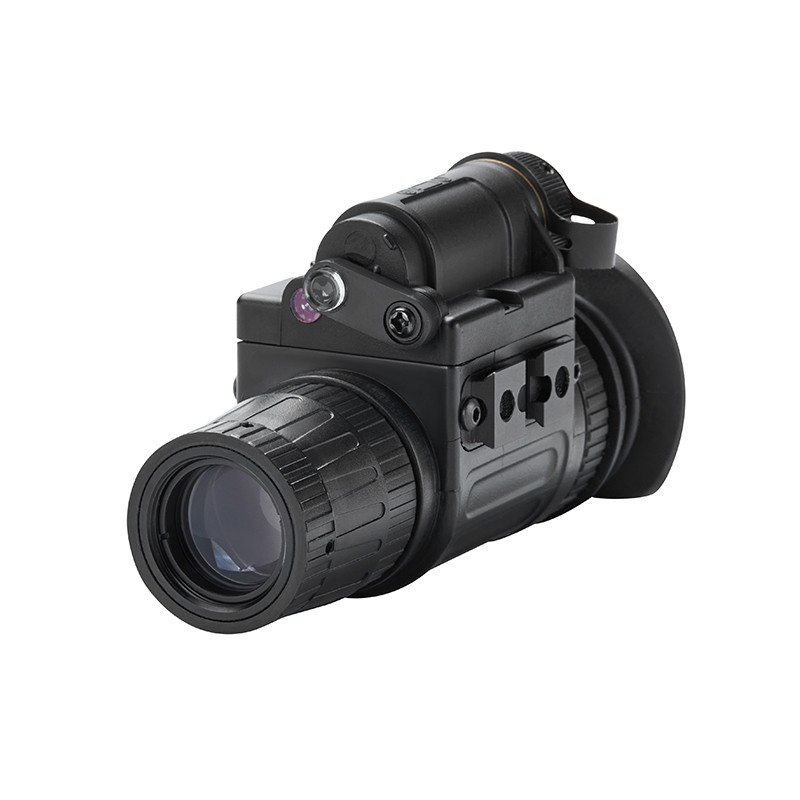

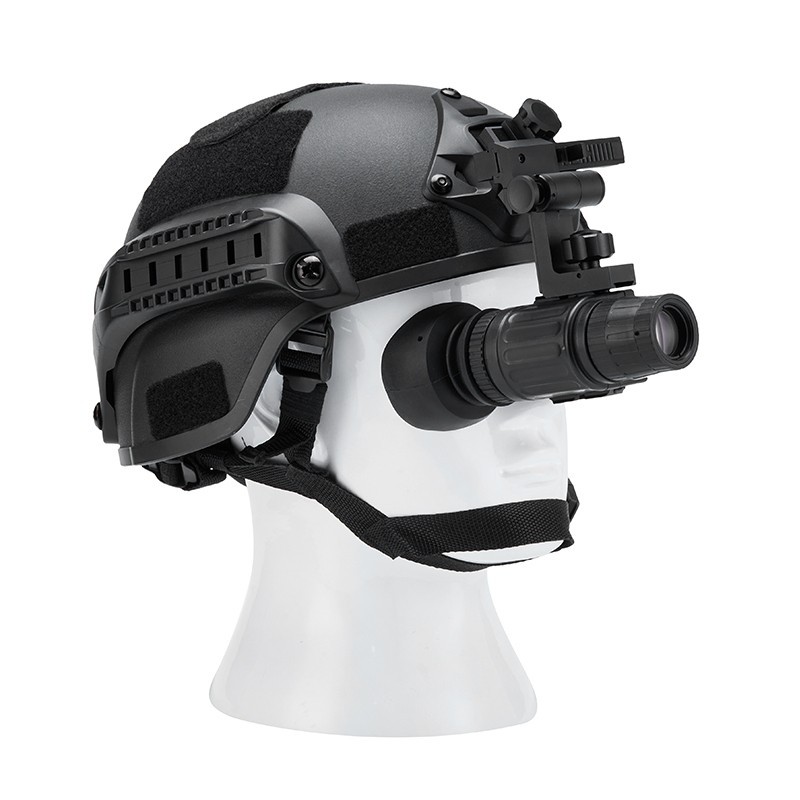

The YM-NV14 night vision is a new product developed based on the latest optoelectronics technology with a field of view of 50 degrees. The imaging is clear, the operation is simple. The magnification can be changed by replacing the objective lens. The night vision device has a built-in infrared Illuminator and an auto- gain system. The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night without lighting. It is equipment for public security departments, armed police forces, special police forces, and guarding patrols
MODLE | YM-NV14 |
Image intensifier | GEN2+ White Phosphor FOM 1800+ |
Magnification | 1X |
Resolution ( lp/mm) | 64 |
Photocathode | S28+ |
S/N （dB） | 28+ |
Luminous sensitivity（uA/lm）
| 450-500 |
MTTF | 10,000 |
FOV（degree） | 40+/-2 |
Detection distance（M） | 180-220 |
Diopter range | +5/-5 |
Optical system | F1.2, 25mm |
Syetem distortion | <0.5% |
pupil distance（mm） | 20-45 |
Off-axis （mm） | 5-10 |
Coating | Multilayer broadband coating |
Distance range（M） | 0.25--∞ |
Auto anti strong light | High sensitivity broadband detection |
Rollover detection | Solid non-contact automatic detection |
Dimensions（mm） | 110*63*42 |
Materials | plastic |
Weight（no battery） | 225g |
Battery Voltage | 2.6-4.2V |
Battery type | AA Battery |
Battery life（H） | 80(IR OFF) 40(IR ON) |
Temperature range（℃） | -40/+50 |
Humidity range | 5%-98% |
Waterproof | IP65（IP67 optional） |
Integrated IR illuminator | 970nm |
Warranty | 2 years |
Operating temperature | -40℃ to +40℃ |
